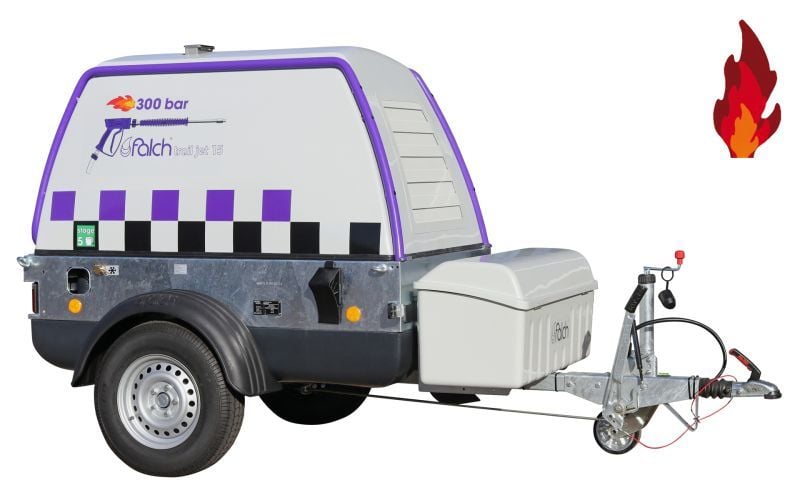

Trail jet 15 300-24-70-d
Operating pressure: 100 - 300 bar
Flow rate: 12.5 - 24 l/min
Water temperature: 30 - 70 °C
Sound power level LpA, LwA +/- 1,5 dB: 76 dB, 97 dB
Fuel consumption under 60% load: 3.5 diesel l/h
Power, pumping rotation speed, water inlet pressure, max. water inlet temperature: 15 kW, 1438 rpm, 2, 8 bar, 40 °C
Heating power oil burner, operating voltage (ac/dc): 99 kW, 12 V, DC
Net weight, vertical load: 945 kg, 100 kg
Power-on time (hours/day): 24/1

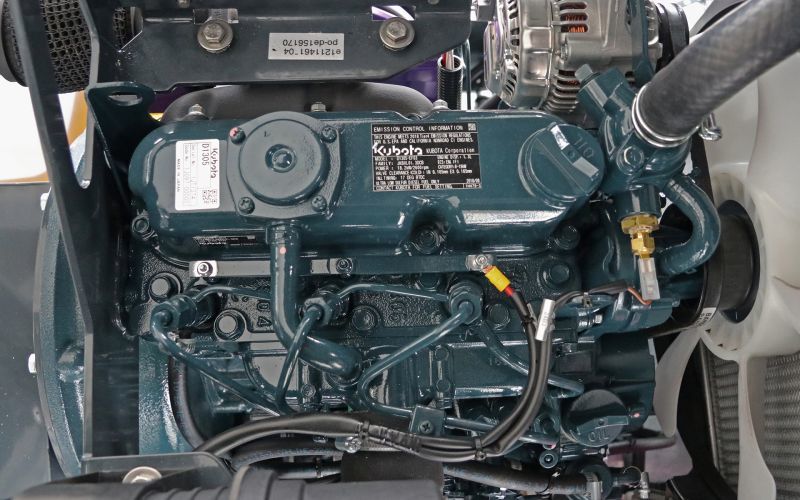

Diesel engine, max. power/power output, speed, idle speed, cooling system: 18.5 kW, 18 kW, 2300 rpm, 1150 rpm, 3 cyl., 1261 ccm, water
Period of guarantee: 24 month
Antifreeze system: included
Water tank capacity: 200 l
Safety switch lack of water: included
Standard nozzle size: 060 US gal/min
Heating oil consumption under 60% load: 4.5 l/h
Length x width x height: 3250 x 1600 x 1850 mm
İtem number: G609
