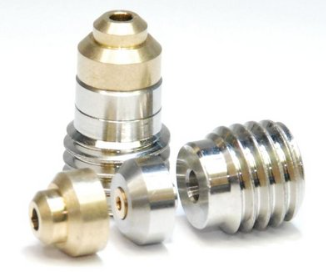

Sapphire nozzle 280-M12
The sapphire nozzle type 280-M12 contains three parts and is designed for surface treatment. The nozzle is characterized above all by its long service life, efficiency and quality. This nozzle was designed for customer-specific applications up to an operating pressure of 3000 bar. The gasket and mounting screw are available separately for this nozzle.
The heart of the nozzle, its the sapphire that is completely manufactured by mvt AG, thus ensuring a consistent and high quality. All sapphire are checked for scratches, cracks and flow.
This product is compatible with the following brands or products:
Type F
Form 10
Properties and Advantages
Long lifetime
Constant jet quality
High-power and focused water jet
Needle jet with high energy density
Easy to install and disassemble
Swiss Quality
Applications
Automobile and aircraft industry
Construction industry
Mining
Chemical industry
Iron, steel and metal industries
Energy industry
Beverage industry
Glass, porcelain and ceramic industries.
Lumber industry
Municipal operations
Agriculture
Mechanical and apparatus engineering
Food industry
Specifications
Operating pressure (bar) max. 3000
Operating temp. (°C) max. 150
Tightening torque (Nm) max. 25
Instructions
When manually operating high pressure guns and lances the repulsive force on the axis should not exceed 250N! If the repulsive force exceeds 150N, a support / body armour is required!
