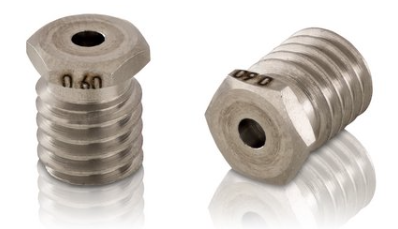

Sapphire nozzle 078

The mvt high-performance nozzle type 078 for surface treatment is characterized by its service life, efficiency and quality. Due to the external shape of the M6 thread, the nozzle can be installed in all customer-specific systems on the market. The maximum operating pressure of this nozzle is 1000 bar.

The heart of the nozzle, its the sapphire that is completely manufactured by mvt AG, thus ensuring a consistent and high quality. All sapphire are checked for scratches, cracks and flow.

• Properties and Advantages
  • Long lifetime
  • Constant jet quality
  • High-power and focused water jet
  • Needle jet with high energy density
  • Easy to install and disassemble
  • Swiss Quality
  Applications
  • Construction industry
  • Iron, steel and metal industries
  • Mechanical and apparatus engineering
  • Cement and concrete industry
  • Industrial cleaning
  • Spray bars

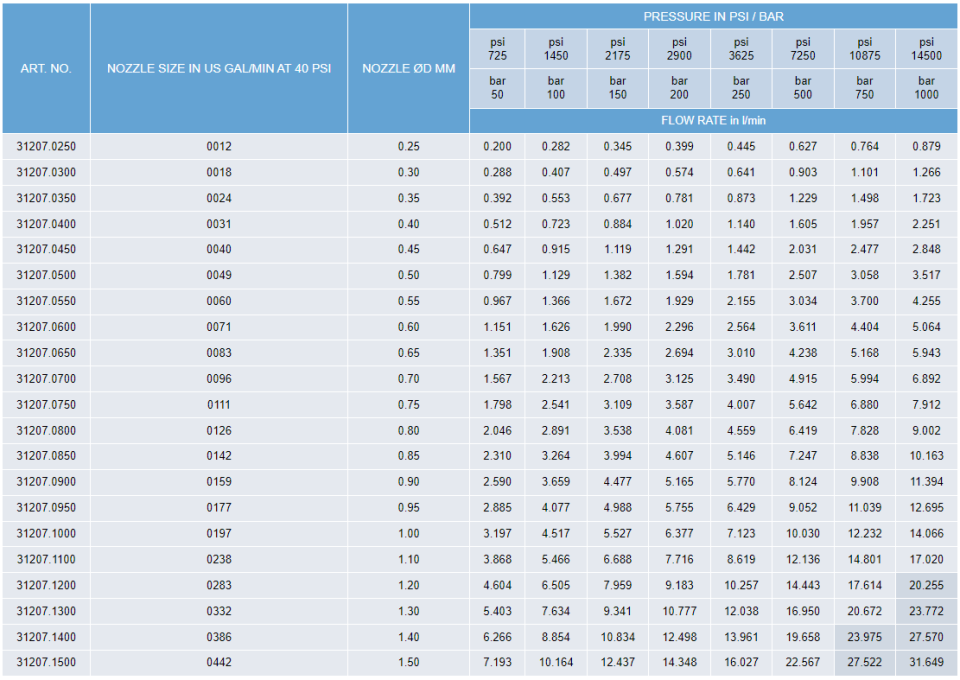

  • Specifications
    • Operating pressure (bar) max. 1000
    • Operating temp. (°C) max. 150
    • Instructions

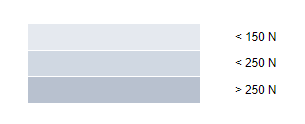

      When manually operating high pressure guns and lances the repulsive force on the axis should not exceed 250N! If the repulsive force exceeds 150N, a support / body armour is required!

      Datasheet:https://www.mvt.ch/en/products/pdf/sapphire-nozzle-078?utm_campaign=Sapphire%20nozzle%20078&utm_medium=download&utm_source=products
