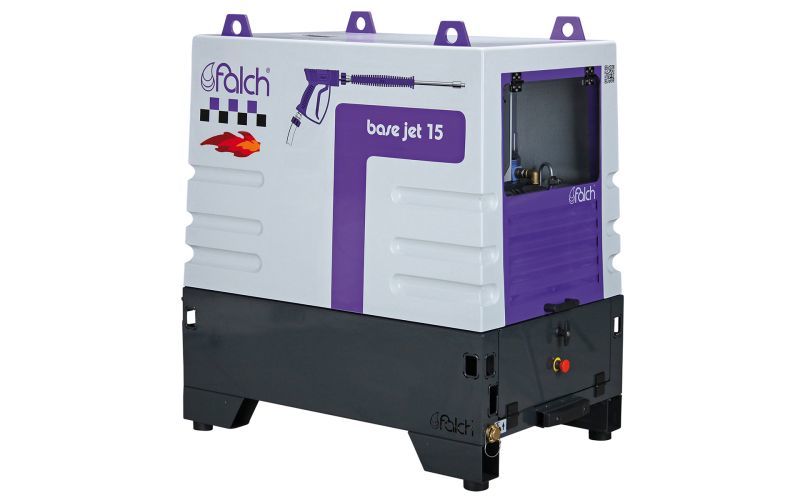

Base jet 15 500-15-95-e
Operating pressure: 50 - 500 bar
Flow rate: 5 - 15 l/min
Water temperature: 30 - 95 °C
Sound power level LpA, LwA +/- 1,5 dB: 77 dB, 94 dB
Power, pumping rotation speed, water inlet pressure, max. water inlet temperature: 15 kW, 1099 rpm, 2, 5 bar, 40 °C
Heating power oil burner, operating voltage (ac/dc): 99 kW, 230 V, AC
Power-on time (hours/day): 24/1
Electrical connection/fuse, cable length: 400 V, 50 Hz, 32 A, 5 m
Electric engine, max. power/power output, speed, idle speed, cooling system: 18 kW, 15 kW, 1465 rpm, 0 rpm, air
Period of guarantee: 24 month
Water tank capacity: 3 l
Safety switch lack of water: included
Standard nozzle size: 029 US gal/min
Heating oil consumption under 60% load: 4.5 l/h
Length x width x height: 1285 x 845 x 1300 mm
İtem number: G352
